Home > Products > Bottle Liquid Scanner > Desktop Liquid Explosive Detection > Security Control System, Dangerous Liquid Scanner & Explosive Detector SA1000

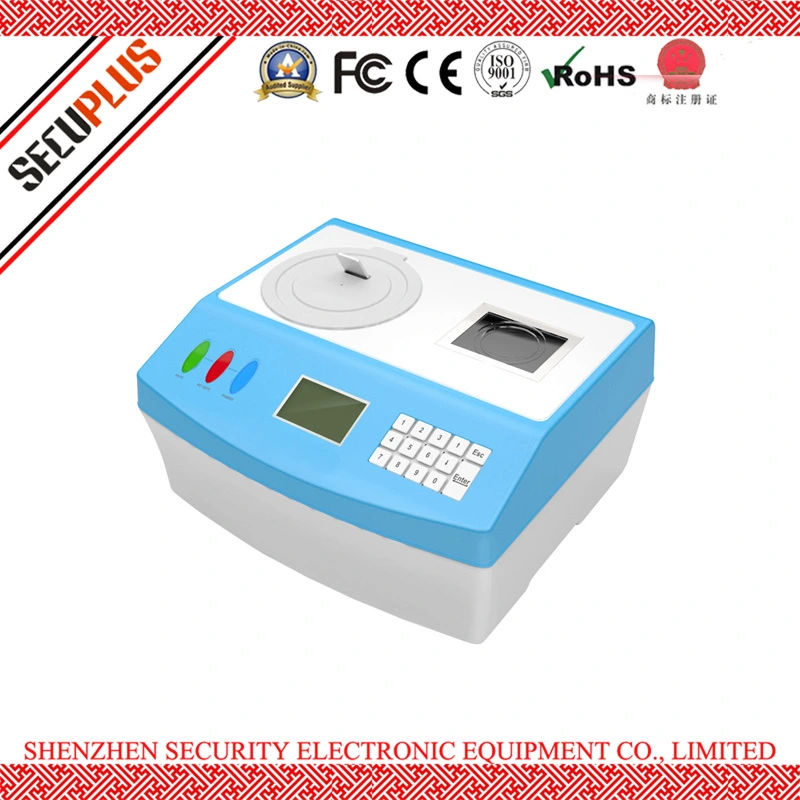

Security Control System, Dangerous Liquid Scanner & Explosive Detector SA1000

Product Description

Security Control System, Dangerous Liquid Scanner & Detector SA1000

SA1000 is a new desktop design for liquid security inspection. It adopts the dielectric constant technology to detect the liquid in metal or non-metal container which meet the requirements of the material and wall thickness. It can rapid detection liquid inside plastic, glass, ceramics, metal and flexible packaging and other containers and distinction water, cola, milk, juice and other safe liquid without opening the container.

SA1000 is widely used in subway, railway, big events and other important places and it has passed the ministry of public security products quality supervision, inspection and test report.
 Product Features:1. Easy Operation: Full automatic operation. No need for manual reset and artificial interpretation; Automatically reset after alarm and continue to the next test; Short detection time, high efficiency;

2. Automatically count:  Counting each detected liquid goods and alarm liquids respectively and separate counting for metal and non-metal testing;

3. Large storage: more than 100000 records;

4. Liquid detected: Liquid explosives, flammable, easy corrosion dangerous liquid which includes more than 40 kinds of dangerous liquid like gasoline, diesel oil, nitroglycerin, nitromethane, ethylene dichloride, toluene, benzene, nitrobenzene, acetone, methanol, ethanol, Ethylene glycol, aldehyde, ether, isopropyl ether, sulfuric acid, nitric acid, hydrochloric acid, hydrogen peroxide (30% hydrogen peroxide), hydrogen peroxide, sodium hydroxide, potassium hydroxide aqueous solution, paint and so on;

5. Real time transmits testing data, alarm information, device status through internet;

6. Able to send the detection data, alarm information and equipment status through the network at real time; Metal and non-metal containers can be detected at the same time without influence. 7. Control access security of airport, train station, subway, gymnasium, important government office, boarder, and seaport and so on.

8. No radiation, harmless to people and test sample - Ultra-wideband pulse microwave reflection method & the thermal conductivity technology

Technical specification:

Limited material of bottle / can

Iron, aluminum, plastic, glass, porcelain, china, pottery.

Identify dangerous liquid

More than 30 sorts:Gasoline, kerosene, diesel oil , hydrochloric acid , sulfuric acid , nitric acid , sodium hydroxide , potassium hydroxide , isopropyl ether , petroleum ether, propionaldehyde, benzene, carbon disulfide, hexane, isopropanol, nitromethane, diethylamine , tris the trihalomethanes , ethylene glycol, xylene and other flammable, corrosive liquids

Effective scan distance

Metal container:30mm from bottom
Other container:60mm from bottom

Alarm for dangerous liquid

Red LED alarm light & long beep

Single for safe liquid

Green LED light & short beep

Power on time

2 seconds

Identify time

Metal container:Within 8 seconds
Other container:Within 1 second

Out size

460*365*245mm (L*W*H)



Temperature of container


Storage temperature / humidity

-40°C to 60°C / 5% to 95% humidity

Working temperature / humidity

15°C to 35°C / 5% to 95% humidity

Power Voltage/ frequency


Power consumption



Are you manufacturer?
Yes, we are professsional manufacturer of security threats detection system in south of China.
Stable quality and foremost service always be the key that we focus on.

How many days we can get the machine after payment?
Normally, with stock only need 3-5 days for leading time.
Without stock, need 10-15 days to manage the production.
Delivery by sea, air for your choices.

How about the warranty and services?
Provide one year warranty and lifetime technic support.
Accept to send our engineer to your country for training in additional cost.
Free training one-on-one in our factory for free.

Security Control System, Dangerous Liquid Scanner & Explosive Detector SA1000
Security Control System, Dangerous Liquid Scanner & Explosive Detector SA1000
Security Control System, Dangerous Liquid Scanner & Explosive Detector SA1000
Security Control System, Dangerous Liquid Scanner & Explosive Detector SA1000


Contact us if you need more details on Desktop Liquid detection. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Security Inspection Equipment、Hazardous Liquid scanning. If these products fail to match your need, please contact us and we would like to provide relevant information.
