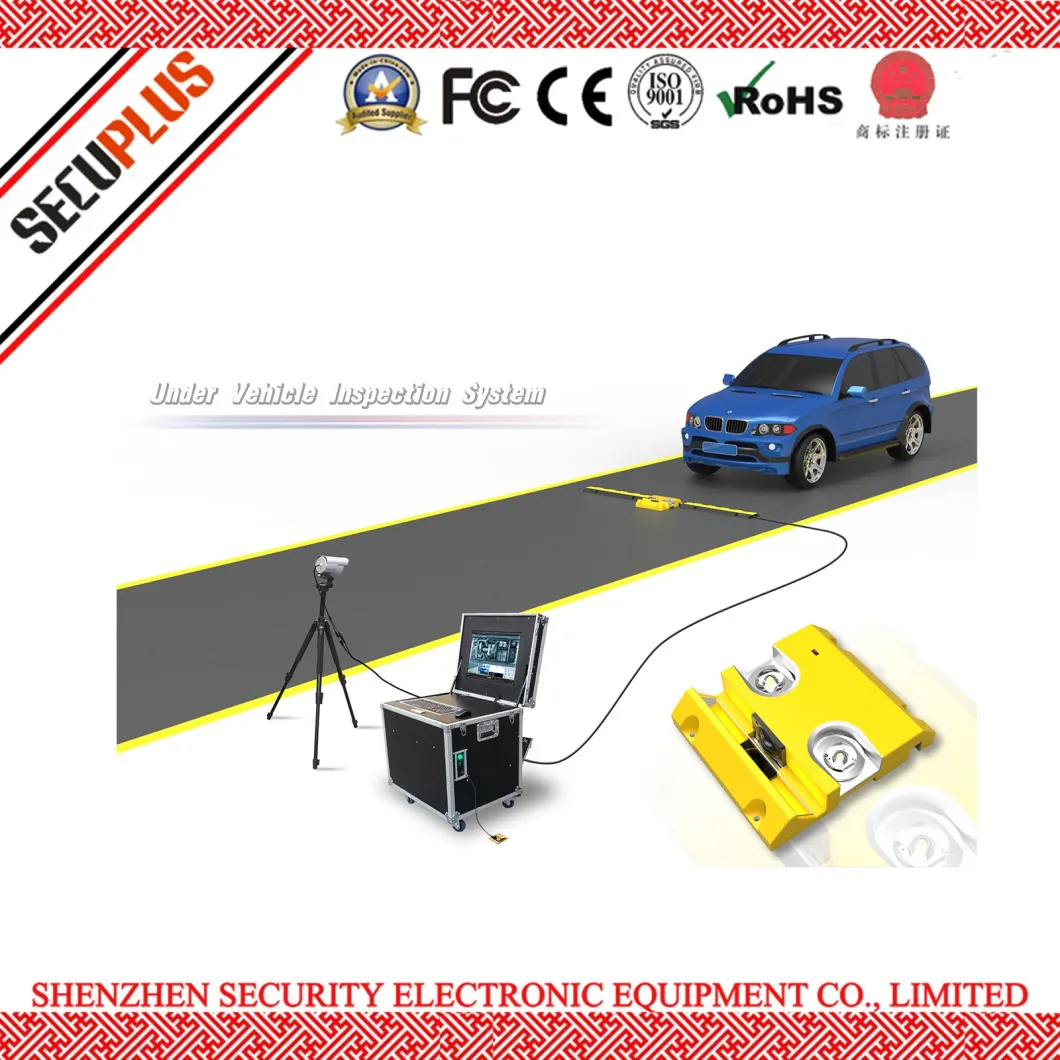

Portable Under Vehicle Monitoring Inspection System for Car Security Control

Product Description

Portable Under Vehicle Monitoring Inspection System for Car Security Control

Features:

1 Automatic digital line scan camera, with high-resolution and clarity of the image.
2 The complete image of under vehicle scanning, without any omissions,
And the image is clear, complete, no distortion, can be clearly observed that
The object is not less than 2mm in diameter.
3 Preparation of inspection processes to meet a variety of on-site needs.
4 Multiple scene image monitoring, recording function.
5 Multi-language user interface design.
6 Strong scalability to easily achieve a variety of system linkage control.
7 (Optional)ALPR(Automatic Licence Plate Recognition)(E. G.: Anti-collision system, Barrier, etc. ).
8 (Optional) Multiple devices networked control functions.

Functions:

1. SAFE HI-TEC Under Vehicle Surveillance System mainly adopt to inspect the beneath part of a variety of vehicles.
2 It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom.
3 UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.

General Specifications:

Features1 Automatic digital line scan camera, with high-resolution and clarity of the image.
2 The complete image of under vehicle scanning, without any omissions,
And the image is clear, complete, no distortion, can be clearly observed that
The object is not less than 2mm in diameter.
3 Preparation of inspection processes to meet a variety of on-site needs.
4 Multiple scene image monitoring, recording function.
5 Multi-language user interface design.
6 Strong scalability to easily achieve a variety of system linkage control.
7 (Optional)ALPR(Automatic Licence Plate Recognition)
(E. G.: Anti-collision system, barrier, etc. ).
8 (Optional) Multiple devices networked control functions.

General Specifications
Technical parameters1 Vertical resolution of the image: 5000*2048 pixels
2 Check the width viewing angle: < 4 meters
3 Speed of vehicle: < 30km/h with ALPR(Automatic Licence Plate Recognition)
< 70km/h without ALPR(Automatic Licence Plate Recognition)
4 Effective Field of View(FOV): Less than 170°
5 Auxiliary light: 100W
6 Weight capacity: <20T
7 Water-proof grade: IP68
8 Scanning device weight: 24KG
9 Scanning device volume: 450mm× 400mm× 88mm
10 Communication interface: RS232/RS422
11 Operating Temperature: -10degree to 55degree
12 Storage temperature: -40degree to +75degree
13 Operating voltage: 110-240V AC, 50-60Hz

System host
System host
1 Brand: Grantech (UFO6377H-SP1-953)
2 CPU: Intel® Core(TM) 2 Duo CPU
P8600@2.4GHz or higher
3 Memory: 2G( optional 4G)
4 Graphics: Inter(R) Gen 5.0 Integrated Graphics Engine
5 Hard Disk: SATA2 Hard Disk 500G
6 Dual LAN (At least one Intel Gigabit)
7 USB2.0 (Up to 4 pieces)
8 Monitor: 22inch LCD, resolution up to 1920*1080


RFQ:

Are you manufacturer?
Yes, we are professsional manufacturer of security threats detection system in south of China.
Stable quality and foremost service always be the key that we focus on.

How many days we can get the machine after payment?
Normally, with stock only need 3-5 days for leading time.
Without stock, need 10-15 days to manage the production.
Delivery by sea, air for your choices.

How about the warranty and services?
Provide one year warranty and lifetime technic support.
Accept to send our engineer to your country for training in additional cost.
Free training one-on-one in our factory for free.
